Cable tray and ladder systems

The B-Line series firestop solution includes a variety of products to help create a barrier that impedes the transmission of smoke, fire, and toxic gases from spreading between adjacent rooms and floors for the rated time period. The firestop solution includes:

Pillows and pads
Sealants
Composite sheets
Quick pass solution
Putty sticks and pads
Fire barrier self-locking pillows

Contact me about this product

Back to search

Live chat

Overview Models Resources Support

3M fire barrier self-locking pillows

Model numbers:
- FSP-SLP-S (small)
- FSP-SLP-M (medium)
- FSP-SLP-L (large)
Extremely easy to install - saves time and labor
Easy removal and fully reusable - with no blocking or fusing of materials
No cutting required, no left over debris
Up to three-hour UL Listed F-Rating
UL Listed systems up to 540 sq. in. opening
Passes hose stream test without cumbersome wire mesh
Smoke seal tested and listed
Listed for blank or filled openings in gypsum wallboard or concrete
Available in three (3) sizes
One (1) or two (2) cable trays per opening

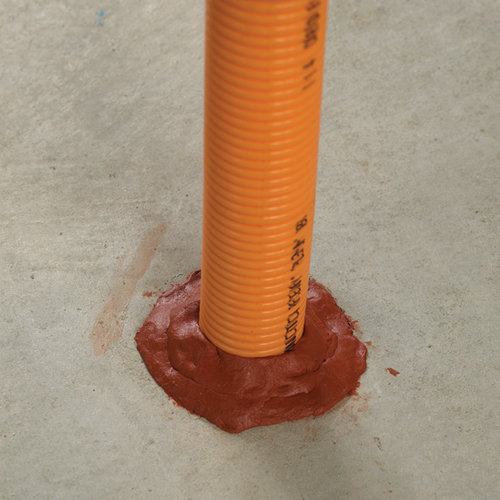

3M fire barrier moldable putty

Model numbers:
- FSP-MPP-4x8 (small)
- FSP-MPP-7x7 (medium)
- FSP-MPP-9x9 (large)
Pliable, easy to mold into any shape
Adheres to most surfaces but not to the applicator’s hands
Pads easily conform and adhere to a wide variety of metallic and non-metallic electrical outlet boxes
Wide range of UL Listed systems
Excellent aging properties

3M fire barrier CS-195+ composite sheets

Ideal for fire-stopping blank openings and through-penetrations of multiple cable, pipe ducts, buss ducts and cable trays.

Model numbers:
- FSP-CS-16x28
- FSP-CS-28x52
- FSP-CS-36x24
- FSP-CS-36x36
- FSP-CS-36x41
Intumescent
Lightweight and easy to handle - just cut and form to fit
Easy to install using common trade tools
Easy to fasten - bolt punch or drill through and use self-tapping screws or anchor bolts
Bottom-of-floor applications available
No mixing or damming required
Re-enterable
Documented aging properties

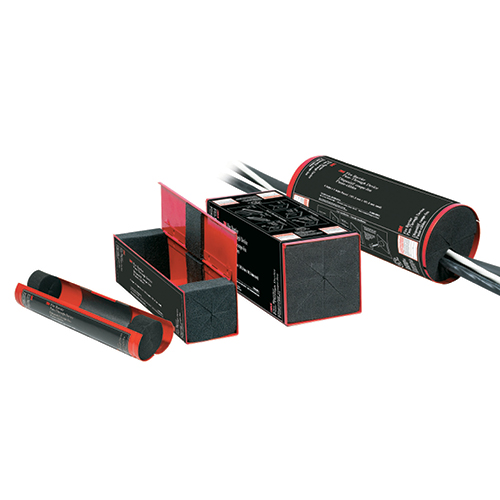

3M fire barrier quick pass devices

Square device model numbers
- FSP-QPS-2
- FSP-QPS-4
Round device model number
- FSP-QPR-4
Optional mounting brackets model numbers
- FSP-QPS-2BRK (for FSP-QPS-2)
- FSP-QPS-4BRK (for FSP-QPS-4)
- FSP-QPR-4BRK (for FSP-QPR-4)
Hinged for existing cables
Stackable for multiple penetrations
Optional mounting brackets - single or triplex
Install before or after gypsum wall assembly
Easily identified red color
Quick to pass cables
JCAHO and NFPA Life Safety Code 101 compliant
UL Classified 1, 2 and 3 hour fire (F) and temperature (T) rating
UL Classified L rating, Hot and Cold Smoke Seal

3M fire barrier CP-25WB+ caulk

Model number: FSP-BC-25
Water based - easy cleanup and routine disposal with no special handling
One-part system - no mixing or measuring required
Intumescent and endothermic
No-sag, non-halogen formula
Fast drying - tack-free in approximately 10 to 15 minutes
Water-resistant seal
Paintable
Documented aging properties

3M fire barrier IC-15WB+ caulk

For use as a one-part fire, smoke, noxious gas and water sealant.

Cost effective
UL tested
Distinctive yellow color makes inspections easier

3M Interam E-5 series mat

Blocks heat penetration by chemically absorbing heat energy to protect structural steel and cable trays.

Model number: FSP-EMAT
Provides up to three (3) hours of electrical circuit protection
Made of a combination of organic/inorganic materials
Outdoor durable
Endothermic
Available with a stainless-steel or aluminum backing
Outstanding performance in high-intensity fires
Easy to install in new applications or directly over existing fire protection

3M aluminum foil tape

Model number: FSP-AT-425
Designed to seal the cut edges of 3M™ interam mats to complete the total encapsulation.

Wall and fire sleeve kits and accessories

See brochure for model numbers and specifications.
