Back to search

SMART3000RMXL2U

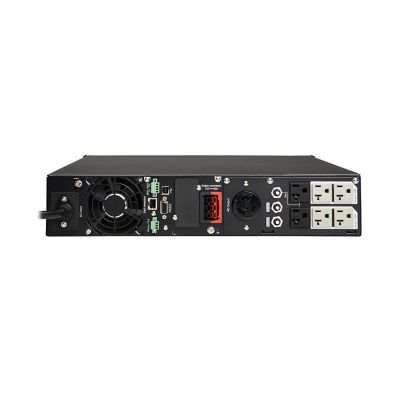

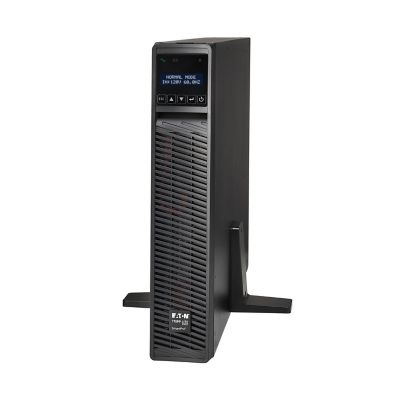

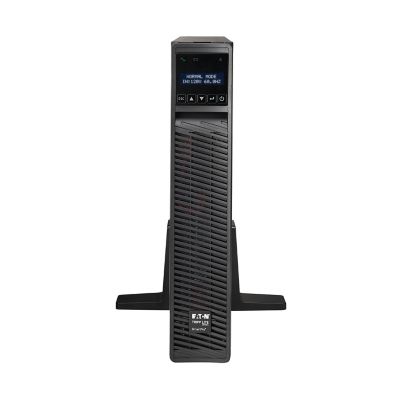

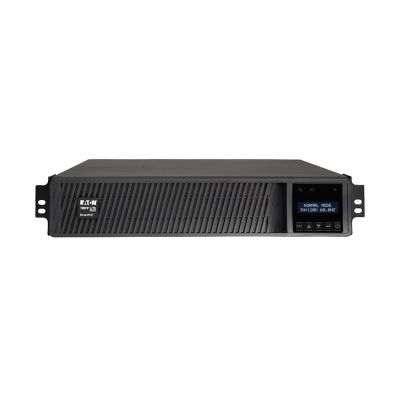

Tripp Lite series SmartPro 3000VA 3000W 120V Line-Interactive Sine Wave UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower

  • Protects equipment against blackouts, brownouts, transient surges and line noise
  • ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment
  • Unity power factor ensures maximum power possible at each power rating
  • Keeps equipment running during outages to allow time for file saves and safe shutdown
  • For remote monitor and control, the WEBCARDLXE is required (sold separately). Not compatible with WEBCARDLX.
  • 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info

Product specifications
Add a free sample to the cart
Contact me about this product

General specifications

Product Name
Eaton Tripp Lite series SmartPro UPS
Catalog Number
SMART3000RMXL2U
UPC
037332144324
Product Length/Depth
23.7 in
Product Height
3.4 in
Product Width
17.2 in
Product Weight
74.5 lb
Compliances
FCC Class A
RoHS
Certifications
CSA certified
NOM
UL 1778
Global Catalog
SMART3000RMXL2U

Battery

Runtime graph
Battery replacement
Pre-July 2023: RBC58-2U Post-July 2023: 744-A3122
Battery type
Valve Regulated Lead Acid (VRLA)
Extended battery capability
Extended runtime supported via BP72VRM2U optional external battery packs

Electrical output

Receptacle
  • 5-20R
  • L5-30R
Topology
Line-interactive
Wattage
3000 W
Output waveform
Sine wave
Output power factor
1
Output nominal voltage
120V default (100/110/120/125V)
Nominal Output Voltage
120V default (100/110/120/125V)
Electric current - max
24A

Electrical input

Input connection
L5-30P
Input cord length
10 ft
Input nominal voltage
120 VAC
Input power factor
1

Communications

Expansion slots
  • One slot for optional WEBCARDLXE web card
  • Note: Not compatible with WEBCARDLX
User interface
LCD display

Environmental

Noise level
50 dBA maximum, front side 1m
Relative humidity
20-95% non-condensing

Additional specifications

Form factor
Rackmount/Tower
Rack size
2U
Rack mounting kit
Yes
Package contents
  • 3000VA 3000W 120V Line-Interactive UPS
  • USB cable
  • DB9 cable
  • Rack-mounting hardware
  • Tower support stands
  • Safety instructions
  • Quick Start Guide
Phase (input)
Single-phase

Export product specification

Brochures

Drawings

Manuals and user guides

Note: If file(s) are missing from the .zip download then the file type is not supported by bulk download.
